inst panel & wiring 2


Rear view sketch of the Instrument Cluster Panel

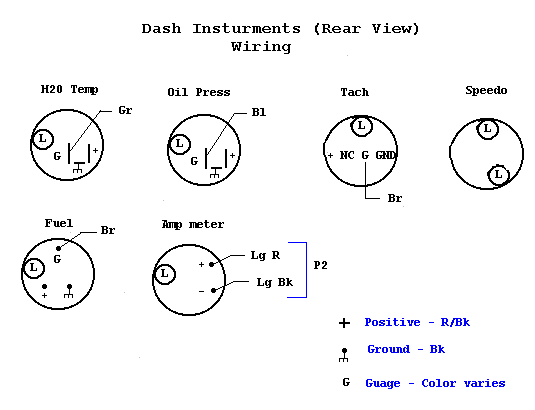

Sketch of the Instrument Cluster Wiring

Back to the Article: Removing the Dash Assembly
